Chocolate Wafer Stick Machine Wafer Production Line 304 Stainless Steel

Product Categories

Skywin Foodstuff Machinery Co., Ltd.

Contact Now

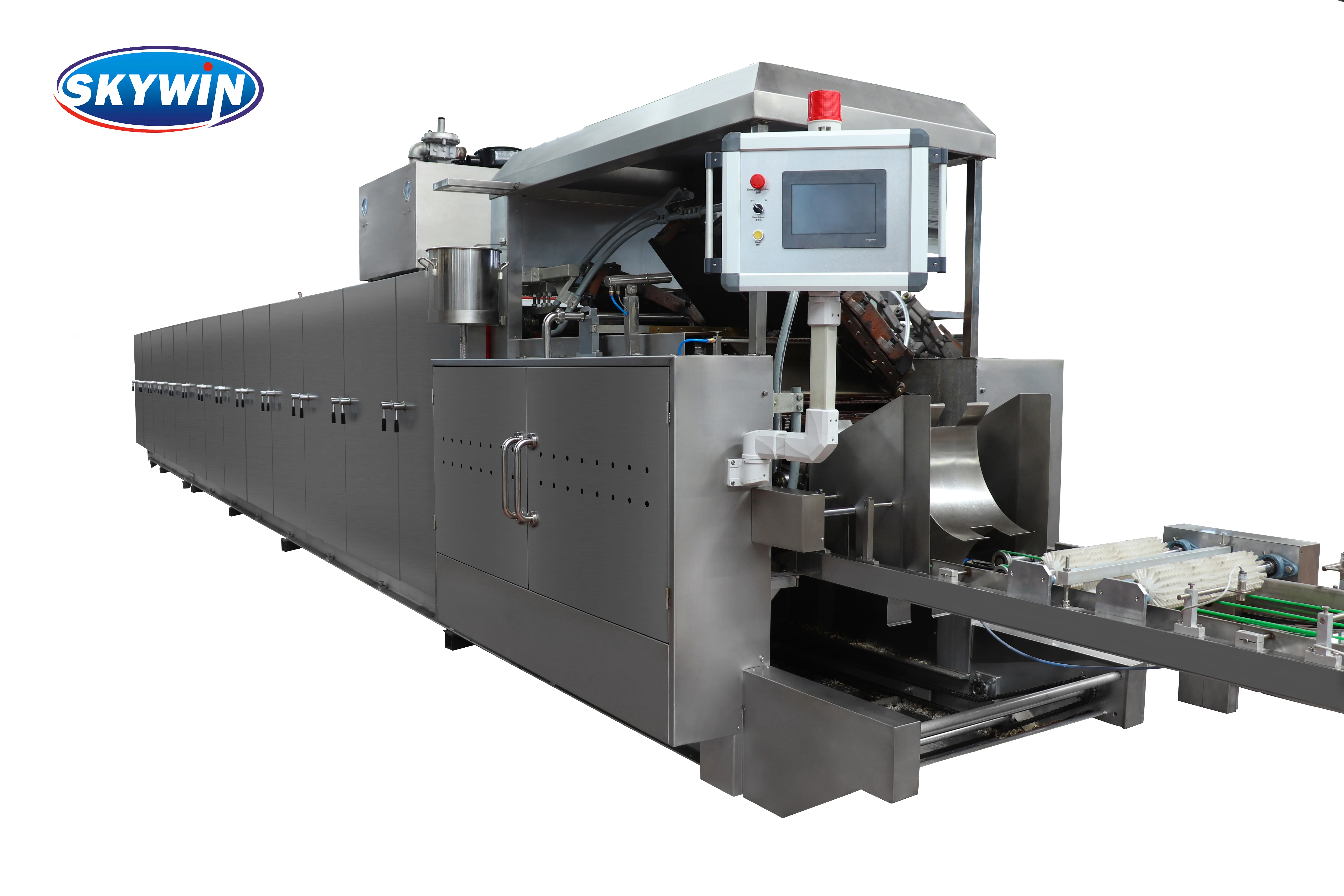

Chocolate Wafer Stick Machine Wafer Production Line 304 Stainless Steel

Name: Chocolate Wafer Stick Machine Wafer Production Line 304 Stainless Steel
Brand: SKYWIN
Price: 123 USD

Quality Chocolate Wafer Stick Machine Wafer Production Line 304 Stainless Steel for sale

Brand Name : SKYWIN

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : $123,000.00 - $200,000.00 / Set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1 Set/Sets per Month Wafer Biscuit Production Line

Delivery Time : 50 days

Packaging Details : The machine shall be packaged by wooden cases, which are suitable for long distance transportation and seaworthy.

Material : 304 Stainless steel

Warranty : 1 Year

Automatic : PLC & Touch Screen System

Feature : Easy Operation

Weight : 25 tons

Warrantly : 1 year

After-sales service provided : Field maintenance and repair service

Application : Biscuit,wafer

Usage : Food Industry Equipment,Biscuit,Sancks,Sancks of Ice Cream Cone Wafer Biscuit Machine

Type : wafer biscuit machine

Function : biscuit making

Condition : New

Voltage : 380 V

Power(w) : 25 kw

Contact Now

Product Description

Wafer Biscuit equipment consists of the following machinery:
Automatic Baking Oven (27 plates) 39,45, 51 ,63 and 75 plates for option
Wafer Sheet Receiver
Wafer Sheet Picking machine
Wafer Cooling Machine
Wafer Cream Spreading machine (Two colors)
Wafer Horizontal Cooling Cabinet
Wafer Laminating Machine
Wafer Cutting Machine
Wafer Full Auto Wafer Batter Mixer
Wafer Cream mixer for different capacity option
Wafer Smashing machine (for biscuit and cookies breaking machine,wafer smashing)
Wafer Electric Control Cupboard

The Whole Wafer Biscuit Production Line

Process:

Chocolate Wafer Stick Machine Wafer Production Line 304 Stainless Steel

Wafer batter mixer

1. Stainless steel.
2. Double tanks:
mixing tank and stockage tank.

Wafer baking oven

1. Automatic cleaning device at the bottom of the furnace. 2. The frame plate is special heat resistant cast iron, little deformation. 3. The mould base is nodular cast iron , long service-life.

Wafer Cooling Machine

The machine improves the natural cooling effect of wafer and gently delivering. The main function of the machine is to ease the thermal stress of wafer during baking. If the wafer cannot be gently cooled, it will be easily broken by small impact due to the thermal stress.

Cream coating machine

1. Spreading cream on surface of wafer sheet by pressing roller. 2. The cream hopper with heating device keeping the hopper temperature.

Wafer Horizontal

Cooling Cabinet

1. The inside temperature can be adjusted from 0 ºC to 8 ºC.2. It is used for cooling the laminated wafers with cream filled, whole shell are made of Stainless steel.

Cutting and

laminating machine

1. The cutting size can be continently adjustable. 2. This machine is pneumatically handled so that the smooth transfer through the machine is ensured.

Wafer Biscuit Sample

* The video and pictures are for reference only

Specification

Type / Plates	Capacity per hour	Power source can be use Electricity or Gas.
27	96.6kg
33	117.3kg
39	138kg
45	158.7kg
51	179.4kg
63	220.8kg
65	227.7kg
69	241.5kg
75	262.2kg
Above capacity is base on each wafer sheet weight 50g/pc, wafer sheet :cream=1:1.3

Packing & Delivery

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
 Step 2: The plastic cushion packing machine (prevent bump).
 Step 3: Plastic film packaging (to prevent ventilation).
 Step 4: Wooden case / frame packaging (easy to transport).
 Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Company Profile

Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines.

Perfect Solution of Biscuit Production & One-stop Procurement Service:
Biscuit production lines; Biscuit sandwiching and automatic connection packaging machines; Biscuit coating chocolate machines; Biscuit packing solutions; Cookies production lines ; Wafer biscuit production lines.
Proposal Design:
The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency.

Technzical Support:
 Provide the technical support according to the customers' requirement.

Erection & Commissioning:Our processional technicians, quick responses and optimum service attitude can help finish the
 installation in a short time.

 After-sales service:
 Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits.

 Selecting & Purchasing:
 According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance - price ratio will be supplied to customers.
